64G5 | Multifunction IO 6U VME Card

NAI’s latest generation 6U VME Multifunction IO and Communication Board, the 64G5, can be configured with up to six intelligent function modules.

Categories: , Tag:

Description

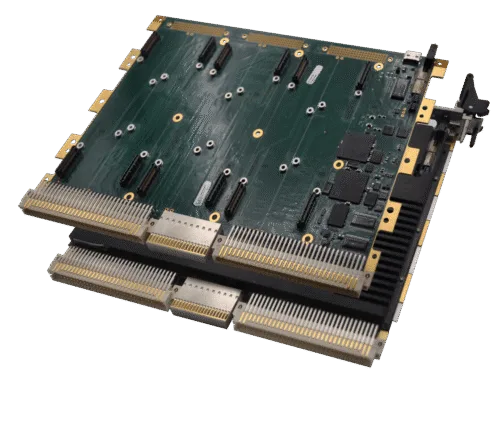

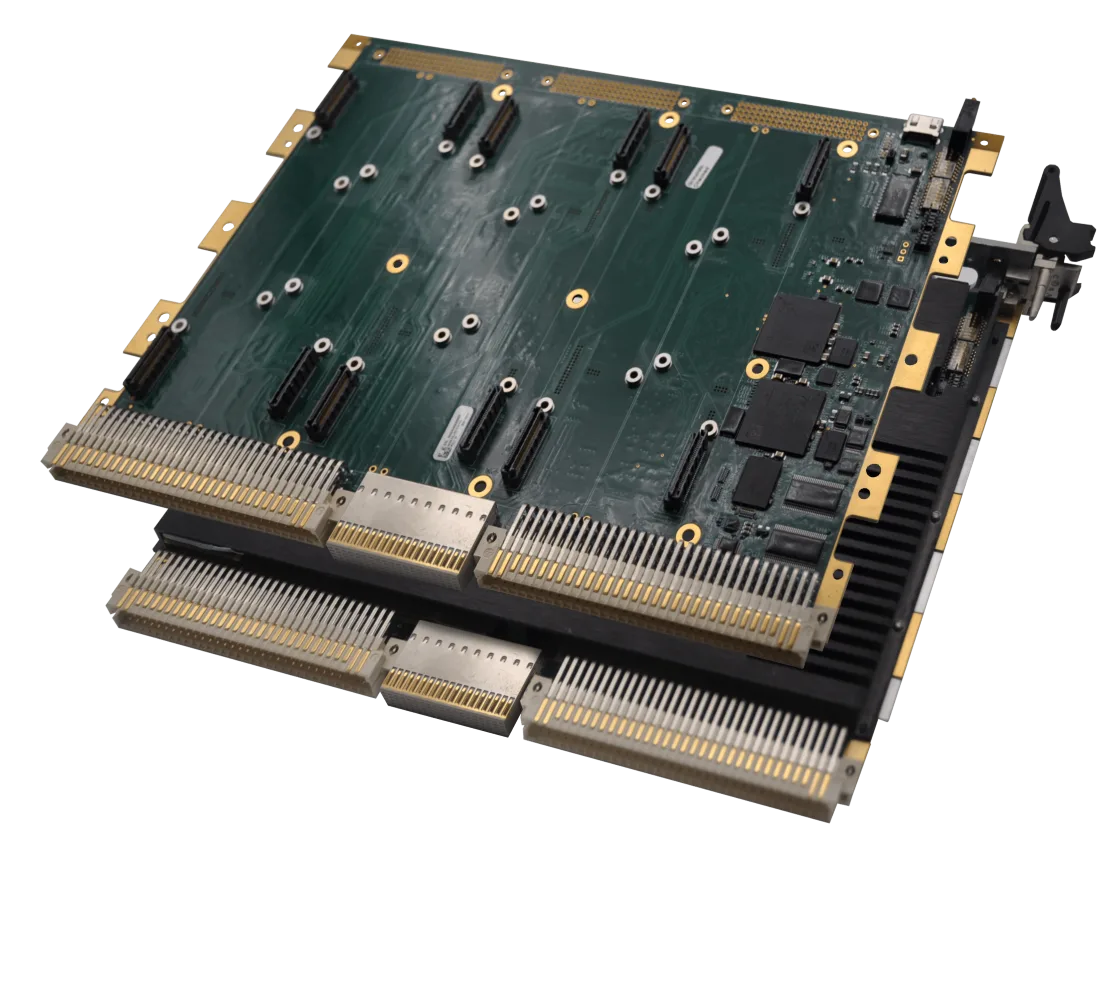

64G5 | Multifunction IO VME Card

  • 6U VME Multifunction IO with Master VME Bus capability
  • Support for 6 independent, intelligent function modules
  • 40+ modules to choose from
  • Independent x1 SerDes interface to each function module slot
  • COSA™ Architecture
  • Control via either VME Bus or dual Gigabit Ethernet (Gig-E) interfaces
  • Connections via front panel, rear panel, or both
  • 2x 10/100/1000 Base-T Ethernet: 2 to rear, or 1 to rear and 1 to front I/O
  • Background Built-in-Test (BIT) continuously checks and reports on the health of each channel
  • Software Support Kits (SSKs) and drivers available
  • VICTORY Interface Services (contact factory)
  • Commercial and rugged models
  • Operating temperature: 0°C to 70°C commercial, or -40°C to +85°C rugged

Link to Supplier Page:

http://www.naii.com/6U-VME-I-O-Comm-Board-64G5/P272

Available Functions:

  • 12-Port Ethernet Switch
  • AC Reference Source
  • Analog-to-Digital (A/D)
  • ARINC 429/575 Communications
  • ARM® Cortex™ A9
  • CANBus Communications
  • Digital I/O – Differential Transceiver
  • Digital I/O – TTL/CMOS
  • Digital-to-Analog (D/A)
  • Discrete I/O – Multi-channel, Programmable
  • Freescale™ PowerPC™ QorIQ P2041
  • Intel® Core™ i7
  • LVDT / RVDT Measurement (L/D) (R/D)
  • LVDT / RVDT Simulation (D/L) (D/R)
  • MIL-STD-1553B – Single/Dual/Quad Channel, Dual Redundant
  • Relay
  • Resistance Temperature Detector (Measurement)
  • Serial Communications
  • Strain Gage Measurement
  • Synchro / Resolver Measurement (S/D) (R/D)
  • Synchro / Resolver Simulation (D/S) (D/R)
  • Thermocouple Measurement

http://www.naii.com/functions/

Additional Information:

Configure to Customize
NAI’s latest generation 6U VME Multi-function I/O and Communication Board, the 64G5, can be configured with up to six intelligent function modules. Ideally suited for rugged military, industrial, and commercial applications, this low-power/high-performance, board delivers off-the-shelf solutions that accelerate deployment of SWaP-optimized systems.

Architected for Versatility
NAI’s Custom-On-Standard Architecture™ (COSA™) offers a choice of over 40 intelligent I/O, communication, and Ethernet switch functions, providing the highest packaging density and greatest flexibility of any multi-function I/O board in the industry. Pre-existing, fully-tested functions can be quickly and easily combined in an unlimited number of ways. Each I/O function has dedicated processing, unburdening the system Single Board Computer (SBC) from unnecessary data management overhead.

Software Support Kit (SSK)
The 64G5 includes SSKs to support multiple operating systems. In addition, SSKs are supplied with source code and board-specific library I/O APIs to facilitate system integration.
