67C3 | Multifunction IO 6U VPX Card

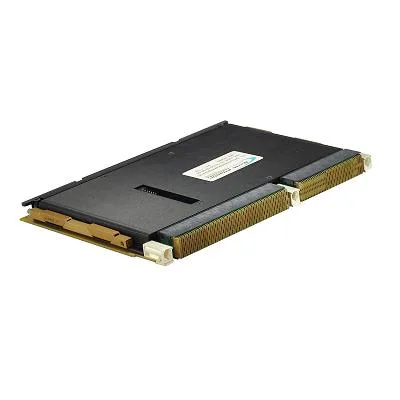

NAI’s 67C3 is a Multifunction IO 6U VPX Card with six function module slots that can be configured with a variety of I/O and communication functions.


67C3 | Multifunction IO 6U VPX Card

  • Support for six independent, intelligent function module
  • A variety of I/O and communication modules to choose from
  • OpenVPX Slot Profile: SLT6-BRG-4F1V2T-10.5.1
  • Control via Gig-E or PCIe interface
  • Connections via front panel, rear panel, or both
  • Background Built-in-Test (BIT) (module dependent)
  • Software Support Kits (SSKs) and drivers available
  • Commercial and rugged models
  • Operating temperature: 0°C to 70°C commercial, -40°C to +85°C rugged

Link to Supplier Page:


Available Functions:

  • 12-Port Ethernet Switch
  • AC Reference Source
  • Analog-to-Digital (A/D)
  • ARINC 429/575 Communications
  • ARM® Cortex™ A9
  • CANBus Communications
  • Digital I/O – Differential Transceiver
  • Digital I/O – TTL/CMOS
  • Digital-to-Analog (D/A)
  • Discrete I/O – Multi-channel, Programmable
  • Freescale™ PowerPC™ QorIQ P2041
  • Intel® Core™ i7
  • LVDT / RVDT Measurement (L/D) (R/D)
  • LVDT / RVDT Simulation (D/L) (D/R)
  • MIL-STD-1553B – Single/Dual/Quad Channel, Dual Redundant
  • Relay
  • Resistance Temperature Detector (Measurement)
  • Serial Communications
  • Strain Gage Measurement
  • Synchro / Resolver Measurement (S/D) (R/D)
  • Synchro / Resolver Simulation (D/S) (D/R)
  • Thermocouple Measurement


Additional Information:

Six I/O and communication function module slots— A variety of modules to choose from

NAI’s 67C3 is a 6U OpenVPX Multi-function I/O and Communication Board with six function module slots that can be configured with a variety of I/O and communication functions. Additional enhancements include FIFO data buffering for select modules. Using multiple DSPs, the enhanced motherboard enables higher processing power and dedicated pre-processing control for each module.

By eliminating the need for multiple, specialized, single-function boards, this unique design increases packaging density, saves enclosure slots, and reduces power consumption. The 67C3, a low-power/high-performance board, is ideally suited for rugged defense, industrial, and commercial applications.

In a VPX chassis, the 67C3 acquires sensor measurement data and controls simulation signals, and makes this information available to an external host processor via Gigabit Ethernet (Gig-E) or PCIe. Pre-existing, fully-tested functions can be quickly and easily combined in an unlimited number of ways. Each I/O function has dedicated processing, unburdening the system Single Board Computer (SBC) from unnecessary data management overhead.

The 67C3 includes Software Support Kits (SSKs) for multiple operating systems. In addition, SSKs are supplied with source code and board-specific library I/O APIs to facilitate system integration.
