CompactPCI Multifunction IO Card

75G5 | Multifunction IO CompactPCI Card

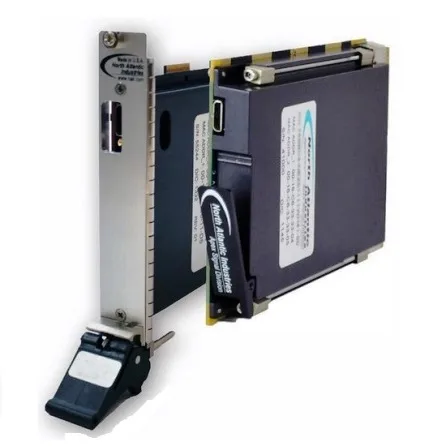

The 75G5 is NAI’s latest generation 3U cPCI board that can be configured with up to three NAI Intelligent I/O and communication function modules.



Categories: , Tag:

Description

75G5 | Multifunction IO CompactPCI Card

  • 3U cPCI board with PCI Bus Master capability
  • Support for 3 independent, intelligent function modules
  • 40+ modules to choose from
  • Independent x1 SerDes interface to each function module slot
  • COSATM Architecture
  • Control via PCI Bus or dual Gigabit Ethernet (Gig-E) interfaces
  • Connections via front panel, rear panel, or both
  • 2x 10/100/1000 Base-T Ethernet: 2 to rear, or 1 to rear and 1 to front I/O
  • Background Built-in-Test (BIT) continually checks and reports on the health of each channel
  • Software Support Kits (SSKs) and drivers available
  • VICTORY Interface Services (contact factory.)
  • Commercial and rugged models
  • Operating temperature: 0°C to 70°C commercial, -40°C to +85°C rugged

Link to Supplier Page:

http://www.naii.com/3U-cPCI-I-O-Comm-Board-75G5/P276

Available Functions:

  • 12-Port Ethernet Switch
  • AC Reference Source
  • Analog-to-Digital (A/D)
  • ARINC 429/575 Communications
  • ARM® Cortex™ A9
  • CANBus Communications
  • Digital I/O – Differential Transceiver
  • Digital I/O – TTL/CMOS
  • Digital-to-Analog (D/A)
  • Discrete I/O – Multi-channel, Programmable
  • Freescale™ PowerPC™ QorIQ P2041
  • Intel® Core™ i7
  • LVDT / RVDT Measurement (L/D) (R/D)
  • LVDT / RVDT Simulation (D/L) (D/R)
  • MIL-STD-1553B – Single/Dual/Quad Channel, Dual Redundant
  • Relay
  • Resistance Temperature Detector (Measurement)
  • Serial Communications
  • Strain Gage Measurement
  • Synchro / Resolver Measurement (S/D) (R/D)
  • Synchro / Resolver Simulation (D/S) (D/R)
  • Thermocouple Measurement

http://www.naii.com/functions/

Additional Information:

Three I/O and communication function module slots — Over 40 different modules to choose from

Configure to Customize
NAI’s latest generation 3U cPCI Multi-function I/O and Communication Board, the 75G5, can be configured with up to three intelligent function modules. Ideally suited for rugged military, industrial, and commercial applications, this low-power/high-performance board delivers off-the-shelf solutions that accelerate deployment of SWaP-optimized systems.

Architected for Versatility
NAI’s Custom-On-Standard Architecture™ (COSA™) offers a choice of over 40 intelligent I/O, communication, and Ethernet switch functions, providing the highest packaging density and greatest flexibility of any multi-function I/O board in the industry. Pre-existing, fully-tested functions can be quickly and easily combined in an unlimited number of ways. Each I/O function has dedicated processing, unburdening the system Single Board Computer (SBC) from unnecessary data management overhead.

Software Support Kit (SSK)
The 75G5 includes SSKs to support multiple operating systems. In addition, SSKs are supplied with source code and board-specific library I/O APIs to facilitate system integration.
