Nano Interface Unit

NIU1A | Single Function Module Rugged System

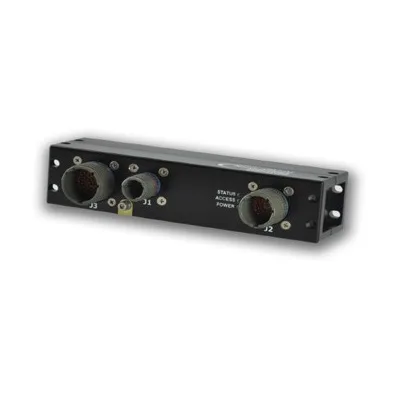

NAI’s NIU1A is a nano unit with an integrated power supply, one function module slot, and an optional ARM Cortex A9 processor well suited for distributed applications via Ethernet.

Category: Tag:

Description

NIU1A | One Function Module Rugged System

  • 1 intelligent function module
  • 40+modules to choose from
  • Customer-configurable
  • COSATM Architecture
  • Optional ARM Cortex™-A9 Dual Core 800MHz Processor
  • 512 MB DDR3L SDRAM
  • 4 GB SATA II NAND Flash (up to 32 GB option)
  • 2x 10/100/1000 Base-T Ethernet ports or 1x 10/100/1000 Base-T Ethernet port and 1x USB port
  • Wind River® Linux and VxWorks®, and Xilinx® PetaLinux OS support (w/optional ARM processor)
  • 2.5”H x 1.7”D x 6.8”L
  • 1.1 lb (499 g)
  • 3 mounting options
  • < 15 W power dissipation
  • +28 VDC input
    MIL-STD-461F MIL-STD-810G, & MIL-STD-704A
  • Continuous Background Built-in-Test (BIT)
  • VICTORY Interface Services (contact factory)
  • Commercial and rugged models
  • Operating temperature: -40°C to +71°C

Link to Supplier Page:

http://www.naii.com/Nano-Interface-Unit-NIU1A/P278

Available Functions:

  • 12-Port Ethernet Switch
  • AC Reference Source
  • Analog-to-Digital (A/D)
  • ARINC 429/575 Communications
  • ARM® Cortex™ A9
  • CANBus Communications
  • Digital I/O – Differential Transceiver
  • Digital I/O – TTL/CMOS
  • Digital-to-Analog (D/A)
  • Discrete I/O – Multi-channel, Programmable
  • Freescale™ PowerPC™ QorIQ P2041
  • Intel® Core™ i7
  • LVDT / RVDT Measurement (L/D) (R/D)
  • LVDT / RVDT Simulation (D/L) (D/R)
  • MIL-STD-1553B – Single/Dual/Quad Channel, Dual Redundant
  • Relay
  • Resistance Temperature Detector (Measurement)
  • Serial Communications
  • Strain Gage Measurement
  • Synchro / Resolver Measurement (S/D) (R/D)
  • Synchro / Resolver Simulation (D/S) (D/R)
  • Thermocouple Measurement

http://www.naii.com/functions/

Additional Information:

Configure with one I/O or communication function module and optional ARM1 Processor – Over 40 different modules to choose from

Configure to Customize
NAI’s NIU1A is a nano unit with an integrated power supply, one function module slot, and an optional ARM Cortex A9 processor. Ideally suited for rugged military, industrial, and commercial applications, this small, low-power unit delivers off-the-shelf solutions that accelerate deployment of SWaP-optimized systems.

Architected for Versatility
NAI’s Custom-On-Standard Architecture™ (COSA™) offers a choice of over 40 intelligent I/O and communication functions. Pre-existing, fully-tested functions can be quickly and easily selected to meet system requirements. Individually dedicated I/O and communication processors allow mission computers to manage, monitor, and control the functions via single or dual Ethernet ports.

All products are designed to operate under extreme temperature, shock, vibration, and EMI environments. EMI filters and gaskets meet or exceed MIL-STD-461F and MIL-STD-810G requirements.

Board Support Package (BSP) and Software Support (SSK)
The NIU1A nano unit includes BSP and SSK support for Wind River® Linux and VxWorks®, and for Xilinx® PetaLinux (w/optional ARM Processor). In addition, SSKs are supplied with source code and board-specific library I/O APIs to facilitate system integration.
