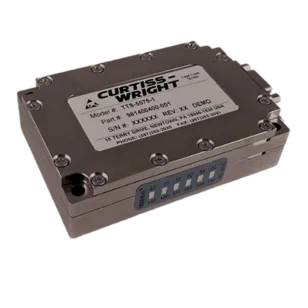

The TTS-5575-1 C-band transmitter, designed by Curtiss-Wright, is a high-performance solution for advanced telemetry applications. Operating in the 4400-4940 MHz range, it delivers a minimum RF output of 5 Watts with exceptional power efficiency. Compliant with IRIG-106-19 standards, it supports PCM/FM, SOQPSK, and Multi-H CPM modulation, offering data rates up to 40 Mbps. Programmable hi/lo power levels and a serial programming interface enhance flexibility. Its rugged design ensures reliability in harsh environments, making it ideal for aerospace and defense telemetry needs, backed by superior customer support.
Key Features
- C-Band Frequency: Operates in the 4400-4940 MHz range for reliable telemetry.
- High RF Output: Minimum 5 Watt output for robust signal strength.
- IRIG-106-19 Compliance: Supports PCM/FM, SOQPSK, and Multi-H CPM modulation.
- Programmable Power Levels: Hi/Lo RF power settings for operational flexibility.
- High Data Rates: Up to 20 Mbps for PCM/FM and 40 Mbps for SOQPSK.
- Selectable IRIG Randomizer: Enhances data integrity and security.
- Serial Programming Interface: Simplifies configuration per IRIG-106-19 standards.
- Rugged Design: Built to withstand extreme environmental conditions.
- Interface Options: Supports TTL, RS-422, RS-232, or multi-drop 485 interfaces.
- Wide Temperature Range: Reliable performance in diverse operational conditions.
Applications
The TTS-5575-1 is tailored for defense and aerospace applications, excelling in flight test instrumentation for manned and unmanned aircraft. Its high data rates and rugged design make it ideal for UAV flight tests, ensuring reliable telemetry in dynamic conditions. The transmitter supports POD instrumentation for real-time data transmission in missile and weapons testing. Additionally, it is suited for launch vehicle telemetry, providing critical data during space missions. Its compliance with IRIG standards and programmable features make it a versatile choice for demanding aerospace and defense telemetry requirements.
