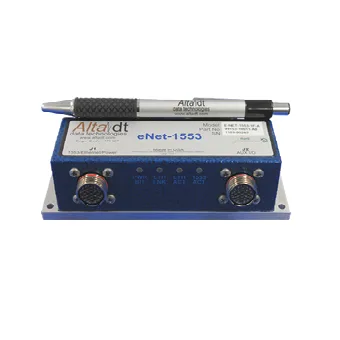

The ENET2-1553™ by Alta Data Technologies is a compact, rugged Ethernet-to-MIL-STD-1553 converter designed for seamless integration of 1-2 dual redundant 1553 busses. Measuring 13.5×3.7x4cm and weighing just 200 grams, this low-power device leverages Alta’s advanced 32-bit FPGA protocol engine, AltaCore™, and AltaAPI™ for robust performance and code portability. With real-time IP/UDP connectivity, it supports Bus Controller (BC), Remote Terminal (RT), and Bus Monitor (BM) functions, including signal capture for troubleshooting. Ideal for lab and field applications, it offers optional POE and operates on 5-30V DC, ensuring versatility in defense and aerospace environments.
Key Features
- Dual Redundant Channels: Supports 1-2 independent MIL-STD-1553 (A/B) channels for reliable communication.
- Real-Time Ethernet Connectivity: Enables fast IP/UDP bridging with <20 µsec response times.
- Compact and Rugged: 13.5×3.7x4cm, 200 grams, built for harsh environments.
- AltaCore™ FPGA Engine: Advanced 32-bit protocol engine for high performance.
- AltaAPI™ Support: Flexible API for seamless integration without recompiling.
- Signal Capture: Channel 1 includes circuitry for cable troubleshooting and cybersecurity modeling.
- Auto BM Mode: Simplifies 1553-to-Ethernet bridging for efficient data transfer.
- Fast Startup: Auto-loads BC, RT, and BM images for rapid initialization.
- POE Option: Supports IEEE 802.3af Power over Ethernet for flexible powering.
- Wide Power Range: Operates on 5-30V DC, 400-700 mAmp typical.
Applications
The ENET2-1553 is tailored for defense and aerospace applications, offering robust solutions for mission-critical systems. Its compact design and Ethernet connectivity make it ideal for remote 1553 operations in military aircraft, unmanned aerial vehicles (UAVs), and missile systems. The device supports real-time data transfer for avionics testing, system integration, and cybersecurity modeling. Its signal capture capability aids in troubleshooting communication issues in radar and weapon control systems. With rugged construction and optional POE, it excels in field deployments, lab testing, and MIL-STD-1760 startup applications, ensuring reliable performance in demanding environments.
Hardware
Software

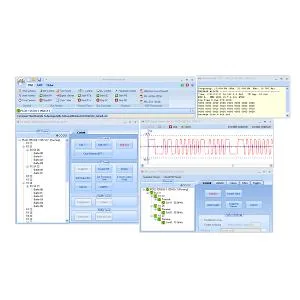

AltaView Bus Analyzer Datasheet
